Distributor of Hangzhou Advance Gearbox

Hangzhou Advance Gearbox Co., LTD is the leading company in China for marine propulsion system which including Advance marine gearbox, main shaft, propeller as a complete system, decades years of accumulated experience ensuring the strong design ability, significantly reduce the risky or mismatching problems of different components.

High Design Standard, Long Service Life Time

With concept of achieve long using life time, all of Advance gearbox are following high durability design standard, some of models uing high class imported gears, the designed overhual period of Advance gearbox is 10,000 hours, and designed service life time is 10 years running, while some of Advance gearbox just start to carry on overhaul after 20 years continuously operation.

All for Gear, for All Gear

In our 60 years of growing and developing, we devoted ourselves into gear industry, to develop more and more gear related products to meet market demand. based on the marine proplusion products, Advance developed new business fields including hydraulic transmission for construction machinery, wind power gearbox, automotive transmission and transfer case.

SeaMac-Official Packager of Advance

As part of EMAC Group, SeaMac is focusing on premium marine propulsion and power system. SeaMac is official packager of advance group, powered by Cummins, Mitsubishi, Volvo and Doosan marine engines, SeaMac provides complete system from diesel engine to marine gearbox, from main shaft to propeller, from main generator set to emergency generator set.

EMAC Group Limited was established in Hong Kong in 2010, aims to become a solid one-stop supplier in the power machinery industry. EMAC operating four overseas subsidiaries and owns 10 self-registered trademarks, our products are widely used in which covers energy, maritime, automotive, construction, railways and spare parts. Based on different types of DCEC engines, EMAC integrate other leading power system products into a complete power system.
With years of rich powertrain supply experience, EMAC can quickly understand and respond to customer needs, greatly reducing customer communication costs.
EMAC provides one-stop solutions covers from pre-design to components supply, from installation…
Read More
Hangzhou Advance Gearbox Co., LTD, was founded in 1960. Advance is located on the south bank of Qiantang River in Hangzhou. It covers an area of ​​568,000 square meters and has nearly 1,700 employees, holding and actually controlling 17 subsidiaries, 4 shareholding subsidiaries. “Top 100”, China’s Top 500 Competitive Enterprises of Large Enterprise Groups, and the first batch of national manufacturing single champion demonstration enterprises. Since the 1980s, the company has independently developed and achieved secondary innovations based on the introduction of foreign advanced technologies. The products have expanded from a single marine gearbox to marine propulsion systems, construction machinery transmissions, wind power gearboxes, automotive transmissions, There are thousands of varieties in ten categories, such as…Read More
With the mission of “Better Power, Better World”, EMAC gathering a brilliant well-educated team, all of EMAC’s team members are have English background, from sales to engineers, from marketing team to administration team, our good English foundation ensuing the ability of smooth communication with all customers.
EMAC also gradually builing our global services network, from branch companies to joint ventures, from local sales representatives to local after-sales services partners, we continuously expanding a global network that to provide better communication and services for our customers.
Till 2021, EMAC have branch companies and joint venture in Thailand and Singapore with after-sales service ability in this two countries. And we have sales representatives in Turkey, Spain, France and UK…
Read More

As a 12 years experience profesional one-stop power system provider, EMAC have unique excellent ability with supplying complete power system for all kinds of applications.
From automotive powertrain system to industrial engine power system, from water pump drive package to complete generator set, from marine propulsion system to marine power system, by working closely with global leading companies’ factories in China, EMAC gives high-end solutions with competitive prices.
EMAC is excellent solution provider with a professional and dedicated team, we developed our advanced management system based on our past experience, and EMAC is the innovator of detailed visulization services that have professional video for every single products we sell…
Read More

We cares your voice, from pre-sales communications, to sales communications, from after-sales complaints to customer review feedback, EMAC continuously collecting all kinds of qustions from customers, no matter questions on products, about business terms, marketing or manament related, helping EMAC and customers to know each other better and grow up together.
With the mission of “Better Power, Better World”, and the vision of “Help World Leverage the Power of China”, EMAC looking for business partners in each country, that can working both as branch company or joint venture, by leverage the rich resources here, business network and local service advantages in China, we hope can help all manufacturers in the world to improve their design ability, manufacturing capability, management…
Read More
DuraMac 02

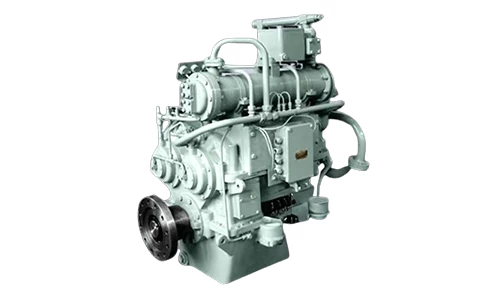

Marine Gearbox

Advance marine gearbox products covering ranges from 10 kW to 10000 kW marine gearbox design development and manufacturing capabilities, which has been widely used in fishing boats, carriers, special ships and other types of vessels. All of our Advance marine gearbox can provide CCS classification certificate, some of our products can provide international classifications including BV, LR, ABS, NK , DNV-GL, RS, KR, RINA etc.

FIND MORE

The picture of DCEC Industrial Engine application scenario picture showing the accessories and scopes of supply.

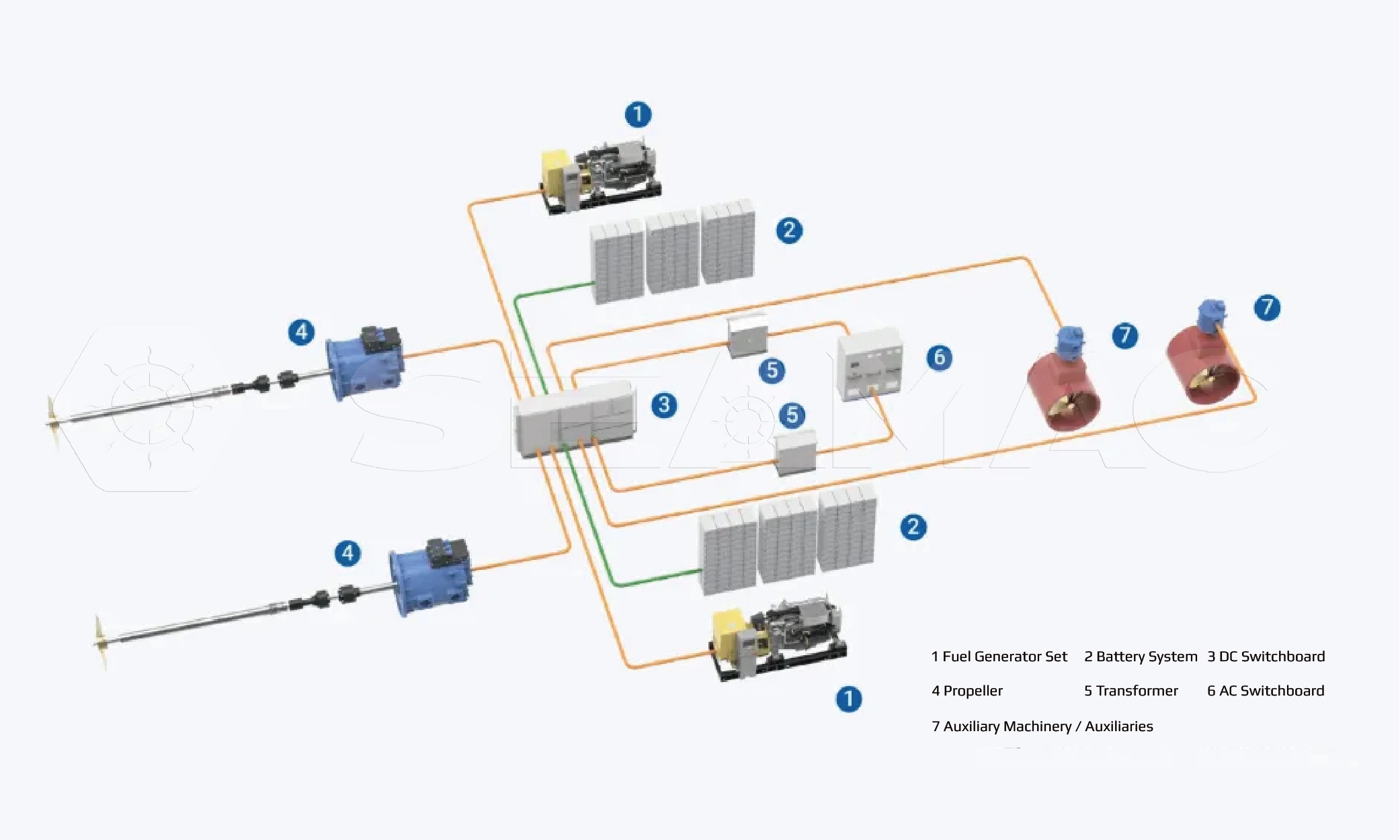

Marine Propulsion System

Advance company takes advantage of its position as the largest manufacturer of marine gearboxes and high elastics in China to manufacture and integrate marine propulsion systems, including propellers (controllable propeller/fixed pitch propeller/side thrust/full rotation), ducts, stern tubes and seals , shafting, gear box, high bomb and electro-hydraulic remote control system, etc.

FIND MORE

The picture of DCEC Pump Engine displays application scenarios and Engine images, showing the accessories and scopes of supply.

Hydraulic Clutch

As the most common accessories of marine gearbox, Hydraulic Clutch adopts wet multi-plate powder metallurgy friction plate structure, which can adapt to high-speed, high-load, high-frequency clutch working conditions. According to user requirements, two control modes, machine control and electronic control, can be selected. The control system is sensitive and easy to realize remote control or automatic control.

FIND MORE

The picture of DCEC Generator Drive application scenario picture showing the accessories and scopes of supply.

Hydraulic Transmission

Introduce technology from Germany, Advance also is the premium brand in hydraulic transmission in China, our hydraulic transmission have special design which have three-component hydraulic torque converter and parallel shaft multi-gear transmission. Advance provides complete system which including hydraulic transmission, power shift gearbox and electro-hydraulic control system.

FIND MORE

The picture of DCEC Marine Engine application scenario picture showing the accessories and scopes of supply.

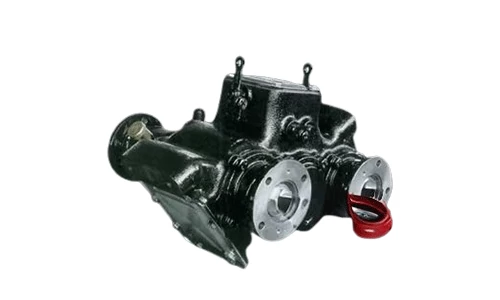

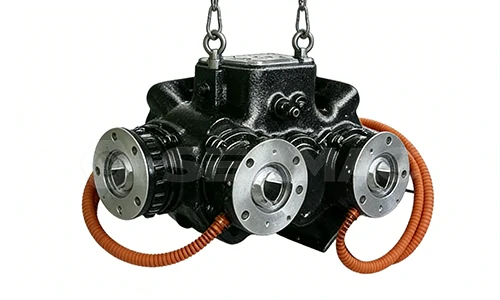

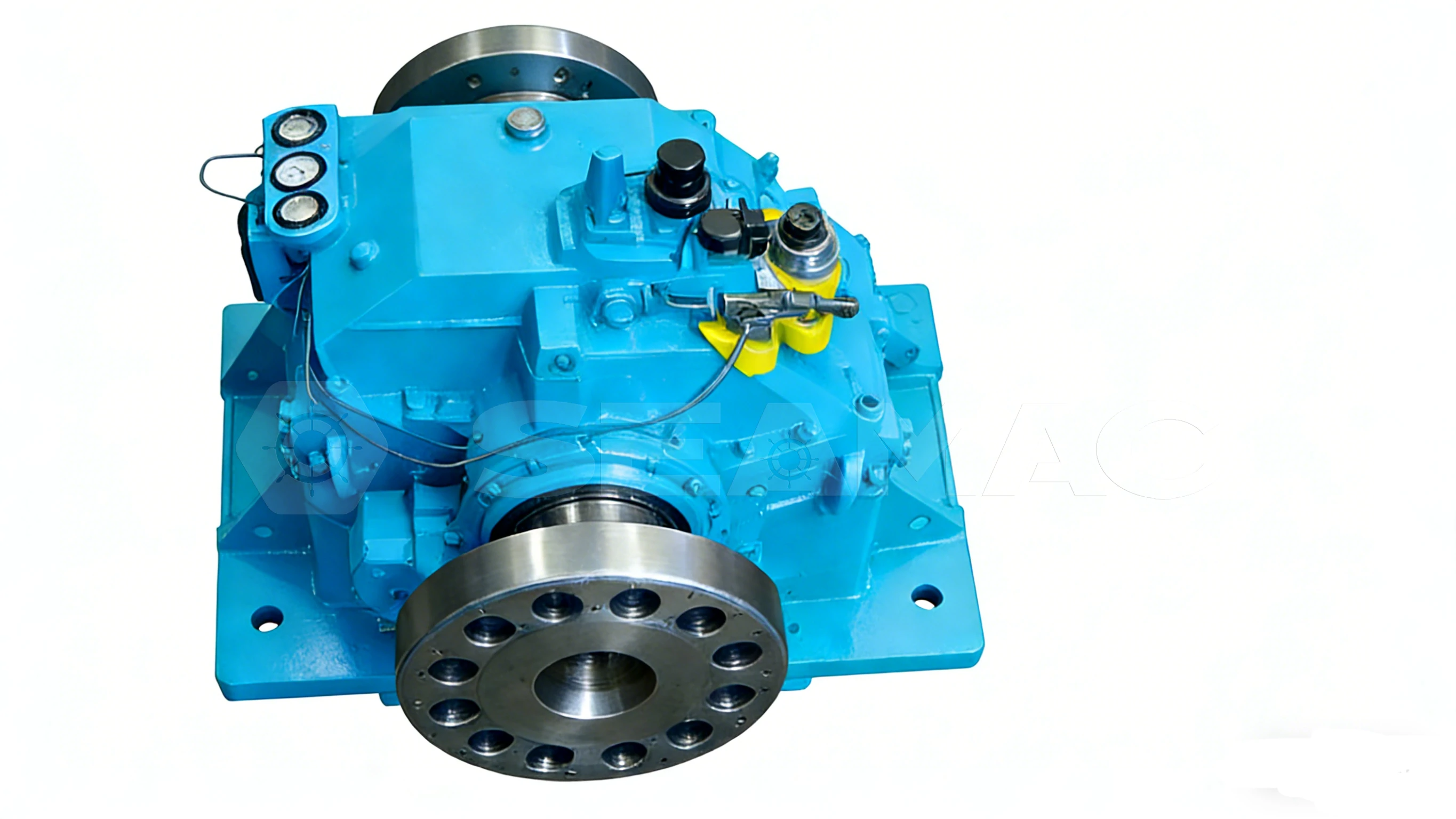

Transfer Case

As the gear industry leader, Advance also participate in the automotive industry, with large market share in transfer case products. All gears of Advance transfer case are of helical teeth, featuring in high gearing overlap coefficient, low operation noise and high reliability, realize gear shifting with pneumatic gear sleeve. Front and rear axle outputs may apply part-time 4WD, with split torsion ratio 1:1, with pneumatic front-axle sleeve engagement as optional.

FIND MORE

The picture of DCEC Parts and Service displays application scenarios and engine images showing the accessories and scopes of supply.

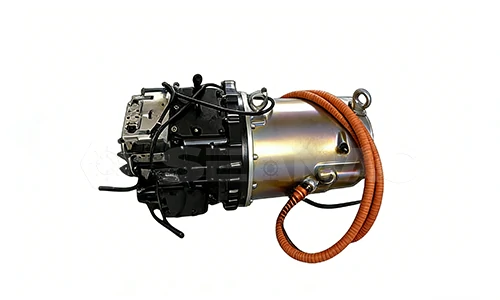

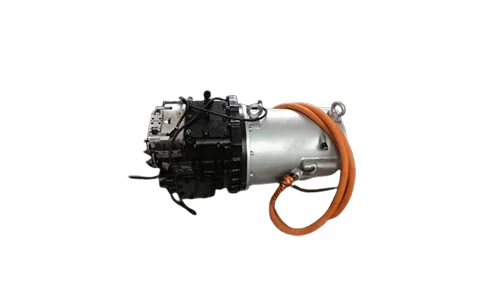

Electric Propulsion System

DT series electric propulsion marine gearbox has a power range of 200kW to 4700kW and a speed ratio range of 1.5 to 6:1. It forms the main propulsion system of the ship with the propulsion motor and fixed pitch propeller, and is widely used in sightseeing cruise ships, fishing boats, passenger ships, etc. Meanwhile, SeaMac also provide full electric propulsion system for customer to choose from, which we believe will be the future trends of marine power resource.

FIND MORE

Find Advance Marine Gearbox by Application

We classified our marine gearbox by the type of application, which also related to the input power and torque range.

Marine Products

MA Series Under 100kW

Input Speed Range:1500-3000 r/min
Reduction Ratio:1.6-5.47
Trans.Capacity:0.006 -0.03 kW/rpm
Power Range:9-75 kw

MB Series 100-500kW

Input Speed Range:1500-2500 r/min
Reduction Ratio:2.0-6.82
Trans.Capacity:0.074 – 0.147kW/rpm
Power Range:88-367.5 kw

MB Series Under 100kW

nput Speed Range:1500-2500 r/min
Reduction Ratio:1.97-5.88
Trans.Capacity:0.039- 0.027 kW/rpm
Power Range:40.5-97.5 kw

600 Series Over 1000kW

Input Speed Range:1000-2100 r/min
Reduction Ratio:2.0-5.71
Trans.Capacity:0.430 – 0.490 kW/rpm
Power Range:430-1029 kw

600 Series 500-1000kW

Input Speed Range:1000-2100 r/min
Reduction Ratio:6.06-18.06
Trans.Capacity:0.29-0.45kW/rpm
Power Range:204-945 kW

400 Series 500-1000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.5-13.96
Trans.Capacity:0.177 – 0.331kW/rpm
Power Range:117-761.3 kw

300 Series 500-1000kW

Input Speed Range:750-2500 r/min
Reduction Ratio:1.50-8.47
Trans.Capacity:0.125 – 0.257kW/rpm
Power Range:93.75-642.5 kw

300 Series 100-500kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:8.94-9.45
Trans.Capacity:0.196 kW/rpm
Power Range:196-450.8 kw

138 Series 100-500kW

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.0-6.47
Trans.Capacity:0.093 – 0.11 kW/rpm
Power Range:93-275 kW

135 Series 100-500kW

Input Speed Range:750-2000 r/min
Reduction Ratio:2.0-2.81
Trans.Capacity:0.099-0.070 kW/rpm
Power Range:52.5-198 kw

120 Series 100-500kW

Input Speed Range:750-2500 r/min
Reduction Ratio:2.03-3.71
Trans.Capacity:0.088 0.044 kW/rpm
Power Range:33-158.4 kw

40A Series Under 100kW

Input Speed Range:750-2000 r/min
Reduction Ratio:2.07-3.83
Trans.Capacity:0.0294-0.02 kW/rpm
Power Range:15-58.8 kw

06/16A/26 Series Under 100kW

Input Speed Range:1000-2500 r/min
Reduction Ratio:2.07-4.00
Trans.Capacity:0.004- 0.0199kW/rpm
Power Range:4-50 kW

2700 Series Over 2500kW

Input Speed Range:500-1400 r/min
Reduction Ratio:1.54-12.41
Trans.Capacity:1.54-2.05kW/rpm
Power Range:770-2870 kw

2000 Series 2000-2500kW

Input Speed Range:600-1500 r/min
Reduction Ratio:3.00-13.92
Trans.Capacity:1-1.48 kW/rpm
Power Range:600-2220 kw

1600 Series Over 2500kW

Input Speed Range:500-1400 r/min
Reduction Ratio:1.54-16.1
Trans.Capacity:0.89 -2.05kW/rpm
Power Range:582-2870 kw

1600 Series 2000-2500kW

Input Speed Range:500-1650 r/min
Reduction Ratio:2.97-16.1
Trans.Capacity:0.89-1.213kW/rpm
Power Range:712-2001.45 kw

1400 Series 2000-2500kW

Input Speed Range:600-1800 r/min
Reduction Ratio:6.99-12.54
Trans.Capacity:1.209-0.674 kW/rpm
Power Range:404.4-2176.2 kw

1400 Series 1500-2000kW

Input Speed Range:600-1900 r/min
Reduction Ratio:3.5-19.07
Trans.Capacity:0.6 -1.03 kW/rpm
Power Range:360-1957 kw

1200 Series Over 2500kW

Input Speed Range:1500-3000 r/min
Reduction Ratio:2.03-3.95
Trans.Capacity:0.919 0.850 kW/rpm
Power Range:1275-2757 kw

1200 Series 1500-2000kW

Input Speed Range:600-1900 r/min
Reduction Ratio:1.6-18.47
Trans.Capacity:0.6 -0.93kW/rpm
Power Range:360-1767 kw

1100 Series 1500-2000kW

Input Speed Range:600-1900 r/min
Reduction Ratio:4.94-21.99
Trans.Capacity:0.653 – 21.99kW/rpm
Power Range:391.8-1675.8 kW

1000 Series 1500-2000kW

Input Speed Range:600-2100 r/min
Reduction Ratio:2.0-5.83
Trans.Capacity:0.735-0.65 kW/rpm
Power Range:390-1543.5 kw

800 Series 1000-1500kW

Input Speed Range:600-2100 r/min
Reduction Ratio:3.0-22.18
Trans.Capacity:0.382 -0.6816 kW/rpm
Power Range:229.2-1312.5 kw

1600/1601 Series Over 2000kW

Input Speed Range:1000-2100 r/min
Reduction Ratio:1.51-3.24
Trans.Capacity:1.204-1.0 kW/rpm
Power Range:1000-2528.4 kw

1400/1401 Series Over 2000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.52-2.93
Trans.Capacity:1.031-0.88 kW/rpm
Power Range:880-2371.3 kw

1400/1401 Series 1000-2000kW

Input Speed Range:1600-2100 r/min
Reduction Ratio:2.93
Trans.Capacity:0.88 kW/rpm
Power Range:880-1848 kw

1000/1001 Series Over 2000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:2.88 3.00 3.23
Trans.Capacity:1.03 0.90 kW/rpm
Power Range:900-2369 kw

1000/1001 Series 1000-2000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.18-2.96
Trans.Capacity:0.6-0.735 kW/rpm
Power Range:600-1690.5 kw

700/701 Series 1000-2000kW

Input Speed Range:1000-2500 r/min
Reduction Ratio:0.77-3.62
Trans.Capacity:0.49-0.554 kW/rpm
Power Range:490-1385 kw

500/501/502 Series 1000-2000kW

Input Speed Range:1000-2600 r/min
Reduction Ratio:1.35 2.03 3.00
Trans.Capacity:0.398 kW/rpm
Power Range:398-1034.8 kw

500/501/502 Series 500-1000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.03-2.95
Trans.Capacity:0.382-0.404 kW/rpm
Power Range:382-929.2 kw

401/402 Series 500-1000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.0-3.47
Trans.Capacity:0.294-0.331 kW/rpm
Power Range:294-761.3 kw

300/301/302 Series 500-1000kW

Input Speed Range:1000-2300 r/min
Reduction Ratio:1.06-2.95
Trans.Capacity:0.23-0.250 kW/rpm
Power Range:230-575 kw

200/201/230 Series Under 500kW

Input Speed Range:1000-2500r/min
Reduction Ratio:1.48-3.53
Trans.Capacity:0.132-0.184kW/rpm
Power Range:132-404.8 kW

HCV120 Series Under 500kW

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.51-2.02
Trans.Capacity:0.1-0.076 kW/rpm
Power Range:76-250 kW

HC65 Series Under 500kW

Input Speed Range:1000-2500 r/min
Reduction Ratio:1.53-2.96
Trans.Capacity:0.048-0.044 kW/rpm
Power Range:44-120 kW

HC038A Series Under 500kW

Input Speed Range:1500-3200 r/min
Reduction Ratio:1.51-3.45
Trans.Capacity:0.028-0.02 kW/rpm
Power Range:30-89.6 kW

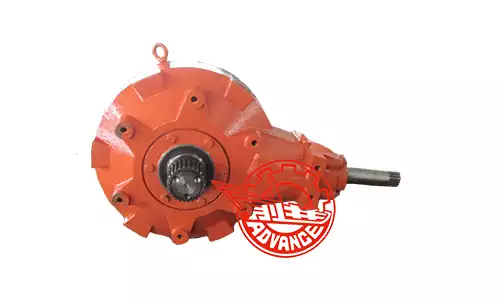

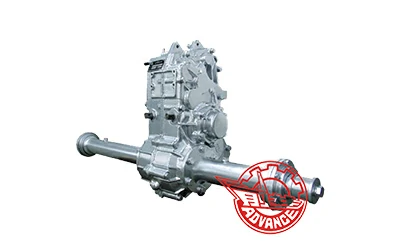

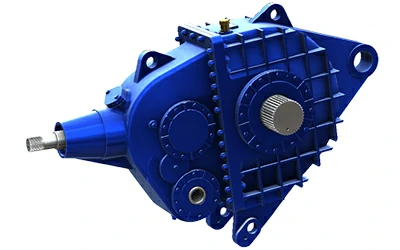

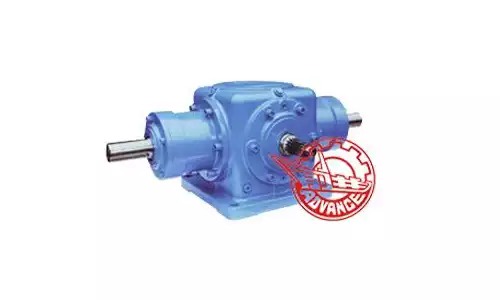

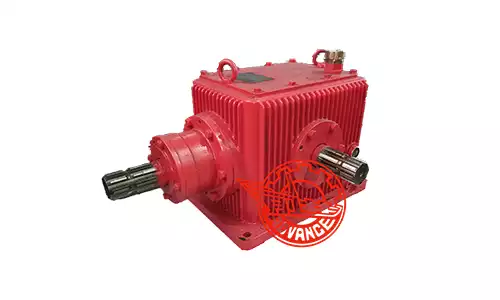

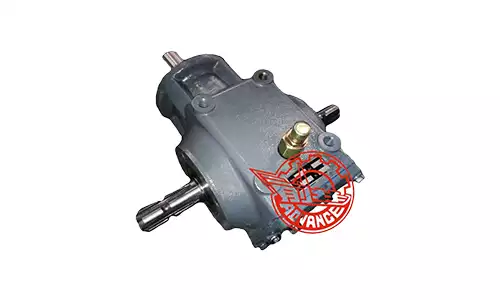

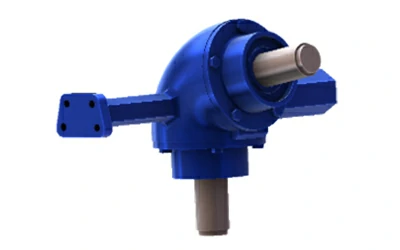

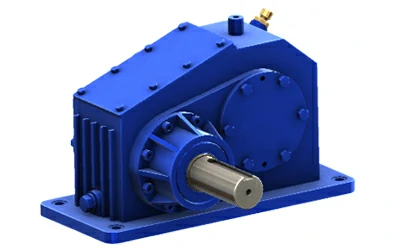

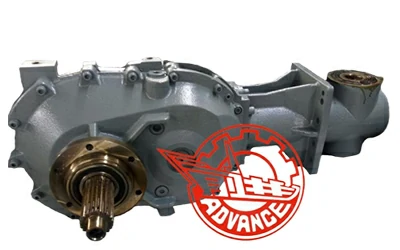

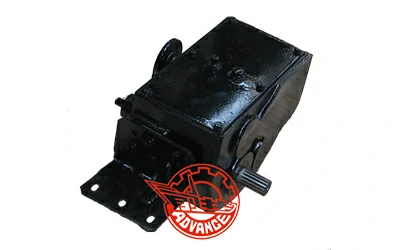

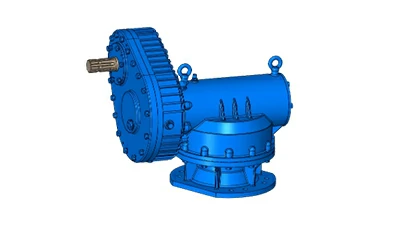

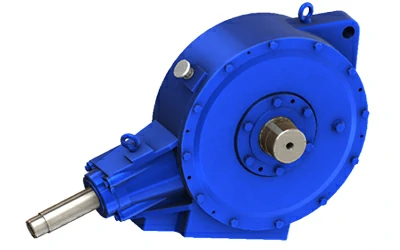

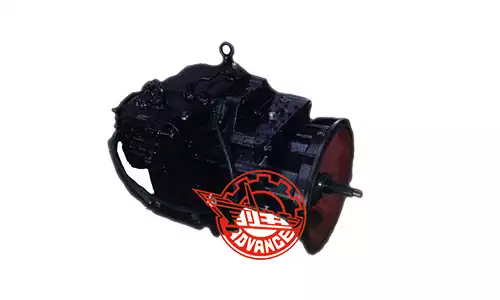

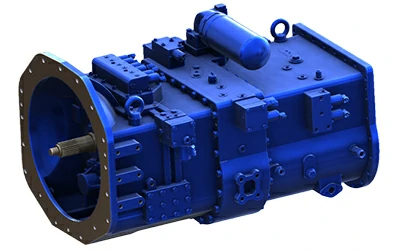

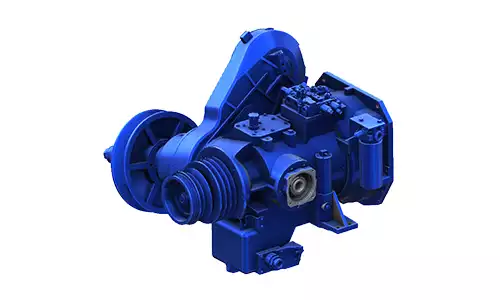

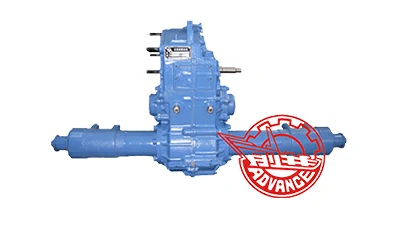

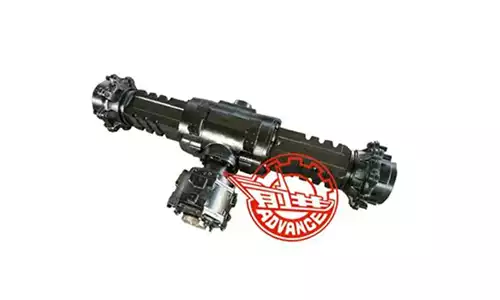

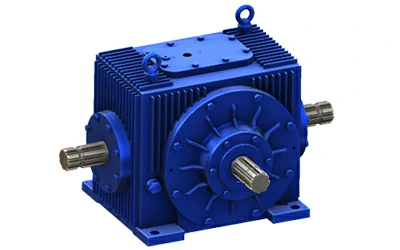

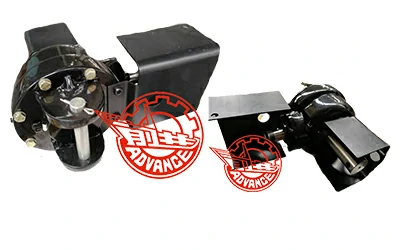

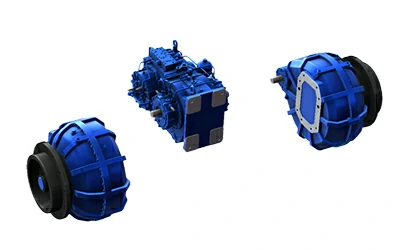

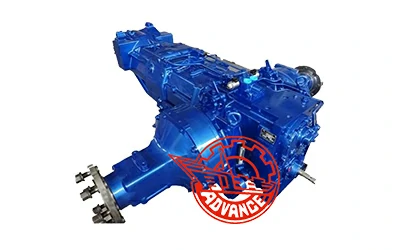

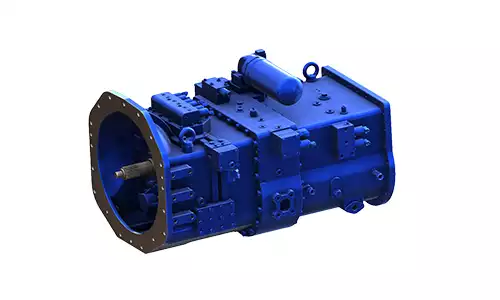

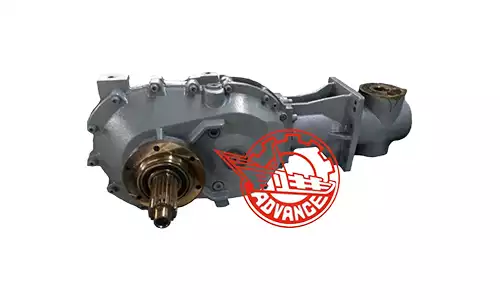

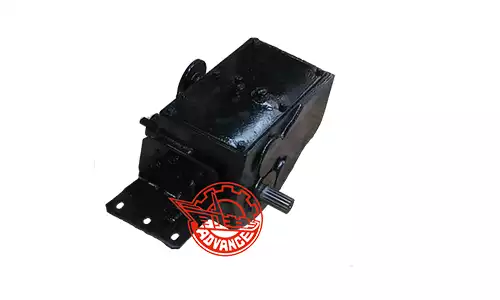

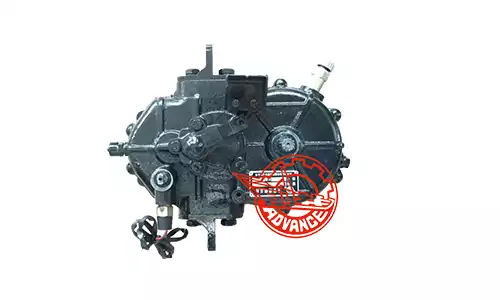

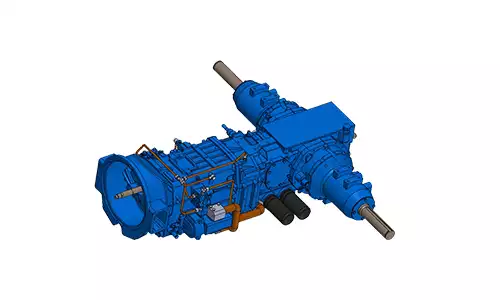

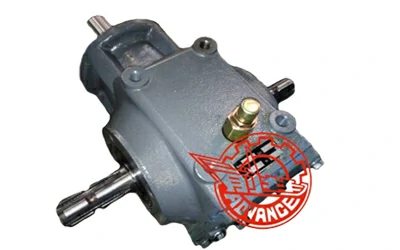

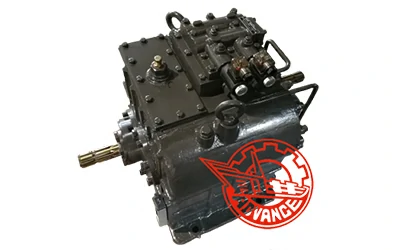

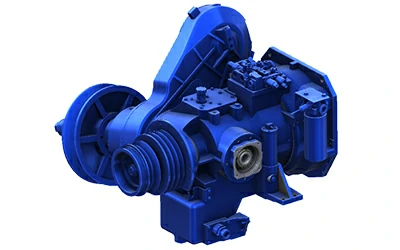

Agricultural Products

Off standard Products

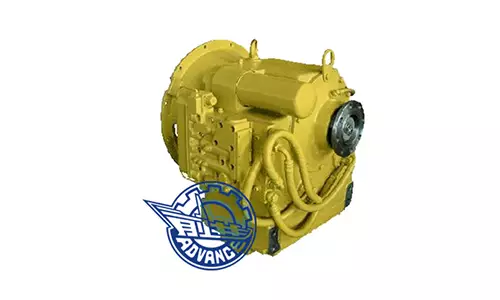

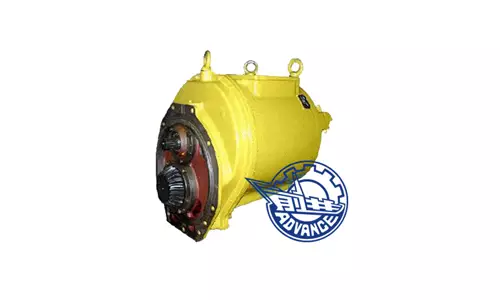

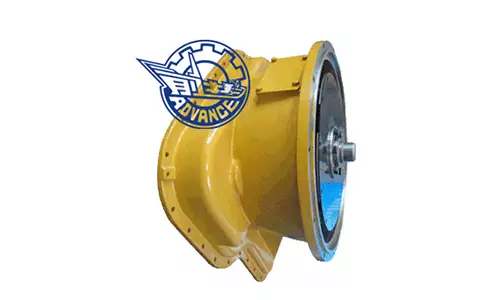

Engineering Products

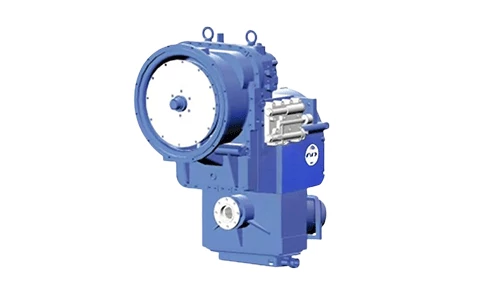

Advance ZL50D Hydraulic Gearbox

Advance ZL50D Hydraulic Gearbox

Model : ZL50D
Max. power : 154 kW
Max. speed : 2200 r / min
Max. input : 2500 N · m torque
Output type : Flange, Dual output

Advance YB82 Hydraulic Gearbox

Advance YB82 Hydraulic Gearbox

Model : YB82
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 680 N · m torque
Output type : Flange, Dual output

Advance YB85 Hydraulic Gearbox

Advance YB85 Hydraulic Gearbox

Model : AYB85
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 750 N · m torque
Output type : Flange, Dual output

Advance YB160 Hydraulic Gearbox

Advance YB160 Hydraulic Gearbox

Model : YB160
Max. power : 160 kW
Max. speed : 2500 r / min
Max. input : 1100 N · m torque
Output type : Flange, Dual output

Advance YB171 Hydraulic Gearbox

Advance YB171 Hydraulic Gearbox

Model : YB171
Max. power : 170 kW
Max. speed : 2600 r / min
Max. input : 1350 N · m torque
Output type : Flange, Dual output

Advance YB250 Hydraulic Gearbox

Advance YB250 Hydraulic Gearbox

Model : YB250
Max. power : 230 kW
Max. speed : 2200 r / min
Max. input : 2450 N · m torque
Output type : Flange, Dual output

Advance YB260 Hydraulic Gearbox

Advance YB260 Hydraulic Gearbox

Model : YB260
Max. power : 260 kW
Max. speed : 2500 r / min
Max. input : 1650 N · m torque
Output type : Flange, Dual output

Advance AYB300 Hydraulic Gearbox

Advance AYB300 Hydraulic Gearbox

Model : AYB300
Max. power : 300 kW
Max. speed : 2100 r / min
Max. input : 2900 N · m torque
Output type : Flange, Single output

Advance YB310 Hydraulic Gearbox

Advance YB310 Hydraulic Gearbox

Model : YB310
Max. power : 310 kW
Max. speed : 2500 r / min
Max. input : 2950 N · m torque
Output type : Flange, Dual output

Advance YB360 Hydraulic Gearbox

Advance YB360 Hydraulic Gearbox

Model : YB360
Max. power : 360 kW
Max. speed : 2500 r / min
Max. input : 3600 N · m torque
Output type : Flange, Dual output

Advance YDH85 Hydraulic Gearbox

Advance YDH85 Hydraulic Gearbox

Model : YDH85
Max. power : 85 kW
Max. speed : 2500 r / min
Max. input : 650 N · m torque
Output type : Flange, Dual output

Advance YDH130A Hydraulic Gearbox

Advance YDH130A Hydraulic Gearbox

Model : YDH130A / YDH130
Max. power : 130 kW
Max. speed : 2500 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

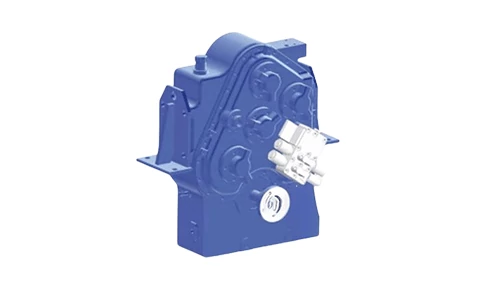

Advance DB428 Hydraulic Gearbox

Advance DB428 Hydraulic Gearbox

Model : DB428
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance DB55 Hydraulic Gearbox

Advance DB55 Hydraulic Gearbox

Model : DB55
Max. power : 58 kW
Max. speed : 2400 r / min
Max. input : 670 N · m torque
Output type : Flange, Dual output

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Advance EBJ235 Electric – Drive Box

Advance EBJ235 Electric – Drive Box

Model : EBJ235
Travel Motor Rated Power : 125 kW
Travel Motor Peak Torque : 1090 N·m
Travel Motor Peak Speed : 7500 rpm
Hydraulic Motor Rated Power : 106 kW
Hydraulic Motor Peak Torque : 312 N·m

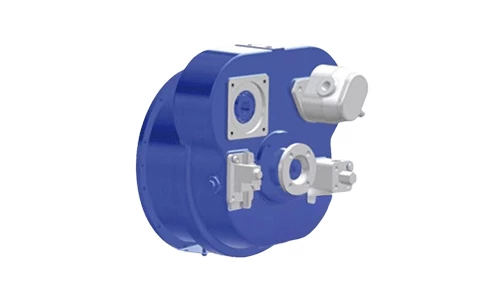

Advance YJ450 Torque Converter

Advance YJ450 Torque Converter

Model : YJ450
Effective Diameter : 450 mm
Torque Converter Coefficient (Zero-Speed) : 2.13
Nominal Torque (Zero-Speed) : 715 N·m
Max Efficiency : 0.82
Output : Flanged, single

Advance YJ407 Hydraulic Torque Converter

Advance YJ407 Hydraulic Torque Converter

Model : YJ407
Effective Diameter : 407 mm
Torque Converter Coefficient (Zero – Speed) : 1.89
Nominal Torque (Zero – Speed) : 450.5 N·m
Max Efficiency : 0.84
Output : Flanged, single

Advance YJ315X Torque Converter

Advance YJ315X Torque Converter

Model : YJ315X
Effective Diameter : 315 mm
Torque Converter Coefficient (Zero-Speed) : 2.86
Nominal Torque (Zero-Speed) : 68.27 N·m
Max Efficiency : 0.812
Output : Flanged, single (with 3 PTO ports)

Advance YJ305 Hydraulic Torque Converter

Advance YJ305 Hydraulic Torque Converter

Model : YJ305
Effective Diameter : 305 mm
Torque Converter Coefficient (Zero-Speed) : 2.31
Nominal Torque (Zero-Speed) : 100 N·m
Max Efficiency : 0.86
Output : Flanged, single

Advance YJ280 Torque Converter

Advance YJ280 Torque Converter

Model : YJ280
Effective Diameter : 280 mm
Torque Converter Coefficient (Zero-Speed) : 3.12
Nominal Torque (Zero-Speed) : 39 N · m
Max Efficiency : 0.836
Output : Flanged, single

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Advance EBJ235 Electric – Drive Box

Advance EBJ235 Electric – Drive Box

Model : EBJ235
Travel Motor Rated Power : 125 kW
Travel Motor Peak Torque : 1090 N·m
Travel Motor Peak Speed : 7500 rpm
Hydraulic Motor Rated Power : 106 kW
Hydraulic Motor Peak Torque : 312 N·m

Advance EDB240 Electric – Drive Box

Advance EDB240 Electric – Drive Box

Model : EDB240
Travel Motor Rated Power : 160 kW
Travel Motor Peak Torque : 1100 N·m
Travel Motor Peak Speed : 8000 rpm
Hydraulic Motor Rated Power : 100 kW
Hydraulic Motor Peak Torque : 320 N·m

Advance EXB168 / EXB178 Electric – Drive Box

Advance EXB168 / EXB178 Electric – Drive Box

Model : EXB168 / EXB178
Travel Motor Rated Power : 120 kW
Travel Motor Peak Torque : 1200 N·m
Travel Motor Peak Speed : 6000 rpm
Hydraulic Motor Rated Power : 60 kW
Hydraulic Motor Peak Torque : 350 N·m

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Atomotive Products

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Industrial Products

Advance HCF2300 Transfer Case

Advance HCF2300 Transfer Case

Model : HCF2300
Engine Rated Power : 350 kW
Engine Maximum Speed : 3450 r / min
Maximum Input Torque : 23000 N · m
Gear Ratio : 1
Torque – splitting Ratio : 1 : 1

Advance HCF1580 Transfer Case

Advance HCF1580 Transfer Case

Model : HCF1580
Engine Rated Power : 390 kW
Engine Maximum Speed : 3450 r / min
Maximum Input Torque : 15800 N · m
Gear Ratios : 1.32 / 0.9
Torque – splitting Ratio : 1 : 2

Advance YJ450 Torque Converter

Advance YJ450 Torque Converter

Model : YJ450
Effective Diameter : 450 mm
Torque Converter Coefficient (Zero-Speed) : 2.13
Nominal Torque (Zero-Speed) : 715 N·m
Max Efficiency : 0.82
Output : Flanged, single

Advance YJ407 Hydraulic Torque Converter

Advance YJ407 Hydraulic Torque Converter

Model : YJ407
Effective Diameter : 407 mm
Torque Converter Coefficient (Zero – Speed) : 1.89
Nominal Torque (Zero – Speed) : 450.5 N·m
Max Efficiency : 0.84
Output : Flanged, single

Advance YJ315X Torque Converter

Advance YJ315X Torque Converter

Model : YJ315X
Effective Diameter : 315 mm
Torque Converter Coefficient (Zero-Speed) : 2.86
Nominal Torque (Zero-Speed) : 68.27 N·m
Max Efficiency : 0.812
Output : Flanged, single (with 3 PTO ports)

Advance YJ305 Hydraulic Torque Converter

Advance YJ305 Hydraulic Torque Converter

Model : YJ305
Effective Diameter : 305 mm
Torque Converter Coefficient (Zero-Speed) : 2.31
Nominal Torque (Zero-Speed) : 100 N·m
Max Efficiency : 0.86
Output : Flanged, single

Advance YJ280 Torque Converter

Advance YJ280 Torque Converter

Model : YJ280
Effective Diameter : 280 mm
Torque Converter Coefficient (Zero-Speed) : 3.12
Nominal Torque (Zero-Speed) : 39 N · m
Max Efficiency : 0.836
Output : Flanged, single

Advance EBJ235 Electric – Drive Box

Advance EBJ235 Electric – Drive Box

Model : EBJ235
Travel Motor Rated Power : 125 kW
Travel Motor Peak Torque : 1090 N·m
Travel Motor Peak Speed : 7500 rpm
Hydraulic Motor Rated Power : 106 kW
Hydraulic Motor Peak Torque : 312 N·m

Advance EXB168 / EXB178 Electric – Drive Box

Advance EXB168 / EXB178 Electric – Drive Box

Model : EXB168 / EXB178
Travel Motor Rated Power : 120 kW
Travel Motor Peak Torque : 1200 N·m
Travel Motor Peak Speed : 6000 rpm
Hydraulic Motor Rated Power : 60 kW
Hydraulic Motor Peak Torque : 350 N·m

Advance EDB240 Electric – Drive Box

Advance EDB240 Electric – Drive Box

Model : EDB240
Travel Motor Rated Power : 160 kW
Travel Motor Peak Torque : 1100 N·m
Travel Motor Peak Speed : 8000 rpm
Hydraulic Motor Rated Power : 100 kW
Hydraulic Motor Peak Torque : 320 N·m

Advance XB100 Hydraulic Gearbox

Advance XB100 Hydraulic Gearbox

Model : XB100
Max. power : 110 kW
Max. input speed : 3500 r / min
Max. input torque : 770 N · m
Center distance : 185 mm
Input type : Hydraulic motor

Advance 2JY160 Hydrostatic Transmission

Advance 2JY160 Hydrostatic Transmission

Model : 2JY160
Small Motor Max. speed : 5000 r / min
Small Motor Max. input : 1200 N · m torque
Large Motor Max. input : 1600 N · m torque
Large Motor Max. speed : 5000 r / min
Output type : Flange

Advance YDH130A Hydraulic Gearbox

Advance YDH130A Hydraulic Gearbox

Model : YDH130A / YDH130
Max. power : 130 kW
Max. speed : 2500 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance YDH85 Hydraulic Gearbox

Advance YDH85 Hydraulic Gearbox

Model : YDH85
Max. power : 85 kW
Max. speed : 2500 r / min
Max. input : 650 N · m torque
Output type : Flange, Dual output

Advance YB360 Hydraulic Gearbox

Advance YB360 Hydraulic Gearbox

Model : YB360
Max. power : 360 kW
Max. speed : 2500 r / min
Max. input : 3600 N · m torque
Output type : Flange, Dual output

Advance YH350 Hydraulic Gearbox

Advance YH350 Hydraulic Gearbox

Model : YH350
Max. power : 350 kW
Max. speed : 2300 r / min
Max. input : 3000 N · m torque
Output type : Flange, Dual output

Advance YB310 Hydraulic Gearbox

Advance YB310 Hydraulic Gearbox

Model : YB310
Max. power : 310 kW
Max. speed : 2500 r / min
Max. input : 2950 N · m torque
Output type : Flange, Dual output

Advance AYB300 Hydraulic Gearbox

Advance AYB300 Hydraulic Gearbox

Model : AYB300
Max. power : 300 kW
Max. speed : 2100 r / min
Max. input : 2900 N · m torque
Output type : Flange, Single output

Advance YB260 Hydraulic Gearbox

Advance YB260 Hydraulic Gearbox

Model : YB260
Max. power : 260 kW
Max. speed : 2500 r / min
Max. input : 1650 N · m torque
Output type : Flange, Dual output

Advance YB250 Hydraulic Gearbox

Advance YB250 Hydraulic Gearbox

Model : YB250
Max. power : 230 kW
Max. speed : 2200 r / min
Max. input : 2450 N · m torque
Output type : Flange, Dual output

Advance YB230 Hydraulic Gearbox

Advance YB230 Hydraulic Gearbox

Model : YB230
Max. power : 230 kW
Max. speed : 2500 r / min
Max. input : 1650 N · m torque
Output type : Flange, Dual output

Advance YB171 Hydraulic Gearbox

Advance YB171 Hydraulic Gearbox

Model : YB171
Max. power : 170 kW
Max. speed : 2600 r / min
Max. input : 1350 N · m torque
Output type : Flange, Dual output

Advance YB160 Hydraulic Gearbox

Advance YB160 Hydraulic Gearbox

Model : YB160
Max. power : 160 kW
Max. speed : 2500 r / min
Max. input : 1100 N · m torque
Output type : Flange, Dual output

Advance YB85 Hydraulic Gearbox

Advance YB85 Hydraulic Gearbox

Model : AYB85
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 750 N · m torque
Output type : Flange, Dual output

Advance YB82 Hydraulic Gearbox

Advance YB82 Hydraulic Gearbox

Model : YB82
Max. power : 82 kW
Max. speed : 2200 r / min
Max. input : 680 N · m torque
Output type : Flange, Dual output

Advance ZL50D Hydraulic Gearbox

Advance ZL50D Hydraulic Gearbox

Model : ZL50D
Max. power : 154 kW
Max. speed : 2200 r / min
Max. input : 2500 N · m torque
Output type : Flange, Dual output

Advance DB428 Hydraulic Gearbox

Advance DB428 Hydraulic Gearbox

Model : DB428
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance BS428 Hydraulic Gearbox

Advance BS428 Hydraulic Gearbox

Model : BS428
Max. power : 74 kW
Max. speed : 2500 r / min
Max. input : 650 N · m torque
Output type : Flange, Dual output

Advance DB55 Hydraulic Gearbox

Advance DB55 Hydraulic Gearbox

Model : DB55
Max. power : 58 kW
Max. speed : 2400 r / min
Max. input : 670 N · m torque
Output type : Flange, Dual output

Advance YD131 Hydraulic Gearbox

Advance YD131 Hydraulic Gearbox

Model : YD131
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Advance YD130 Hydraulic Gearbox

Advance YD130 Hydraulic Gearbox

Model : YD130
Max. power : 130 kW
Max. speed : 2600 r / min
Max. input : 1000 N · m torque
Output type : Flange, Dual output

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Other Products

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Products Not Available

The relevant products still under developing or waiting to be update, please contact our sales team for latest updates.

Years of History

Overseas Agent

Exported Countries

Different Products

Customer Review

Global Activity

Subscribe To Our Newsletter

Subscribe To Our Newsletter

Subscribe to get the latest updates from www.advance-gears.com

You have Successfully Subscribed!

Pin It on Pinterest
